$218.00

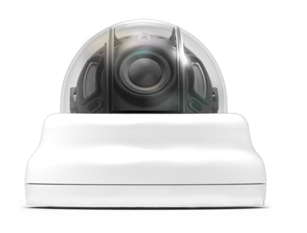

SDIX-DIR6M
1/2.9 inch SONY CMOS (IMX-222 / IMX-322)
Extended Serial Digital Interface / 0 Lux at IR On (IR LED 06pcs)
DNR (Digital Noise Reduction) / WDR (Wide Dynamic Range)
Day & Night (ICR Option) / Easy Installation
ICR V/F lens, DC Auto IRIS V/F Lens, DC Auto IRIS & TDN V/F Lens
2.8-12MM MOTORIZED LENS WITH AUTOFOCUS
Resolution 1080P, 720P
Sensor 1/2.9 inch SONY CMOS (IMX-222 / IMX322)
Total Pixels 2000(H) x 1241(V) = 2,482,000
Effective Pixels 1944(H) x 1092(V) = 2,122,648
Scanning System PROGRESSIVE
S/N (Y signal) More than 52 dB (AGC Off)
Video Output SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option)
Min.Illumination 0 Lux at IR On
White Balance AUTO / AUTO EXT / PRESET / MANUAL
Electronic shutter speed AUTO / MANUAL (1/30sec ~ 1/60,000sec)
SENS_UP OFF / X2 / X4 / X8 / x16 / x32
DNR / ACE OFF / LOW / MIDDLE / HIGH
BACKLIGHT OFF / WDR / BLC / HLC
Day & Night AUTO (Day <--> Night TIME Change) , COLOR , B/W, EXTERN
PRIVACY / FLIP / FREEZE OFF / ON
MOTION / DEFOG OFF / SET
D.ZOOM x1.0 ~ x16.0
Language ENG, CHN, CHN(S), JPN, KOR
Sharpness / Smart IR / Brightness ADJUSTABLE (Sharpness : 0 ~ 10 STEP / Smart IR, Brightness : 0 ~ 20 STEP )
COMM. RS-485(PELCO-D)
Temperature/Humidity Operating (-10'C~+50'C / 30%~80% RH) / Storage (-20'C~+60'C / 20%~90% RH)
Power DC12V
Signal Transmission The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))
